Incline 2.5 Tonne Short Jib Attachment In Stock Melbourne

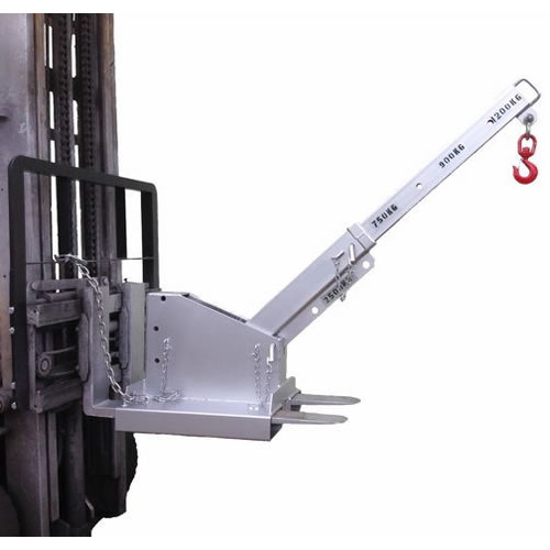

The EW-IJS25 Incline Jib 2.5 Ton Short allows for additional height, compensating for length of the hook and slings when lifting. The jib boom can be set at 3 angled positions as well as level. This jib also offers 5 different hook positions with a 2 metre maximum reach. Manufactured with a Hot Dip Galvanized Finish, they are supplied with a Safety Swivel Hook and Shackle.
- *
Incline 2.5 Tonne Short Jib Attachment In Stock Melbourne
The EW-IJS25 Incline Jib 2.5 Ton Short allows for additional height, compensating for length of the hook and slings when lifting. The jib boom can be set at 3 angled positions as well as level. This jib also offers 5 different hook positions with a 2 metre maximum reach. Manufactured with a Hot Dip Galvanized Finish, they are supplied with a Safety Swivel Hook and Shackle.
- Safe Working Load (SWL 2500kg Max)
- Unit weight 143kg
- Pocket size 185 x 65 mm
- Pocket centres 337 mm
- Horizontal Centre of Gravity 535mm
- Vertical Centre of Gravity 300mm
- Load Centre 825mm
Safe Working Load Per Position
| POSITION | 1 | 2 | 3 | 4 | 5 |
| EXTENSION (mm) | 825 | 1125 | 1260 | 1640 | 2020 |
| SWL (Kg) | 2500 | 1800 | 1200 | 900 | 750 |
In Stock Melbourne, Australia.
