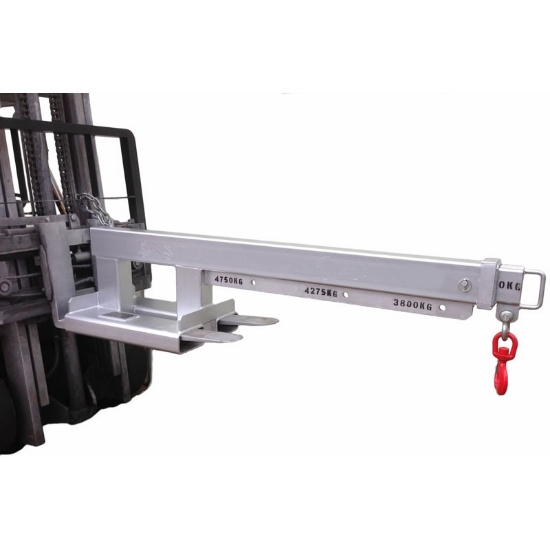

Rigid 4.75 Ton Long Jib Attachment In Stock Melbourne
The Rigid Jib 4.75 Ton Long is an affordable general purpose jib. It is maneuverable in confined spaces with the ability to extend out to 3.5 metres when fully extended. Manufactured with a Hot Dip Galvanized Finish, they are supplied with a Safety Swivel Hook and Shackle. In Stock Melbourne.
- *
Rigid 4.75 Ton Long Jib Attachment In Stock Melbourne
The Rigid Jib 4.75 Ton Long is an affordable general purpose jib. It is maneuverable in confined spaces with the ability to extend out to 3.5 metres when fully extended. Manufactured with a Hot Dip Galvanized Finish, they are supplied with a Safety Swivel Hook and Shackle.
- Safe Working Load (SWL 4750kg Max)
- Unit weight 170kg
- Load centre 935mm
- Pocket size 185 x 65 mm
- Pocket centres 275 mm
- Horizontal Centre of Gravity 1210mm
- Vertical Centre of Gravity 200mm
Safe Working Load Per Position
| POSITION | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| EXTENSION (mm) | 935 | 1395 | 1855 | 2000 | 2380 | 2760 | 3140 | 3520 |
| SWL (Kg) | 4750 | 4275 | 3800 | 3300 | 2500 | 1300 | 760 | 480 |
In Stock Melbourne, Australia.
